High Speed and Intermediate Continuous Annealed Wire Drawing Machine

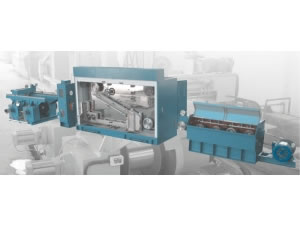

High Speed and Intermediate Continuous Annealed Wire Drawing Machine

High speed wire drawing machines are sort of wire drawing machines with continuous anneal. They are composed of pay-off rack, wire drawing machine, electrical control system, tension controller and take-up machine. The high speed wire drawing machines are applicable for drawing and annealing copper wires from 2.5mm-3.5mm to 1.0mm-2.mm (9DT) or to 0.8mm-2.8mm (11DT).

Performance
These wire drawing machines with continuous anneal adopts DC (direct current) triple annealing pattern, dual inverter control and gear transmission. The high speed wire drawing machines employ pressure adjusting method as the tensioning method and 90W motor type as the transverse pattern. Besides, swing arm type cylinder buffer rod is taken as the detecting device and pneumatic brake as the brake mode.

Features
1. The high speed wire drawing machines are drive by dual frequency inverters and automatic tensioning controller.
2. The wire drawing machines with continuous anneal are transmitted by high precision gears.
3. The high speed wire drawing machines are designed with dual spooling.
4. They make use of imported electric equipments.
5. The wire drawing machines with continuous anneal are characterized by low noise, high production efficiency and high reliability.

After Sale Service
The warranty period of mechanical parts is one year and half a year for electrical equipments. Quick-wear parts are excluded.
Packaging: Thin Film
Mode of Transportation: Shipping

Parameters of High Speed Wire Drawing Machines

Product Model BAOC-9DT BAOC-11DT
Outlet Wire Diameter Ø 1.0-Ø 2.6 mm Ø 0.8-Ø 2.8 mm
Inlet Wire Diameter Ø 2.6-Ø 3.5 mm Ø 2.5 mm-Ø 3.5 mm
Max. Wire Speed 800 mpm/max 1200 mpm/max
Dies No. 9 11
Mechanical Reduction. 19.6%+12.5%
Main Motor Power 45 Kw 55 Kw
Spooling Motor Power 11 Kw 15 Kw
Water Die Diameter Ø 25 mm Ø 25 mm
Max. Annealing Current DC2500 A/max D 3000 A/max
Max. Annealing Voltage DC65 V/max DC65 V/max
Nominal Diameter of Contact Wheel Ø 280 mm Ø 350 mm
Length of Annealing Zone 7500 mm 11000 mm
Annealing Power 165 kVA/max 195 kVA/max
Steam Generator Power 15 kVA/max 195 kVA/max
Vapor Generator Power 18 Kw
Steam Quantity 18 kg/h
Annealing Cooling Water Consumption 650 L /min
Air Consumption 0.4-0.6 MPa 50 liter/min
Weight 3000 kg 3000 kg

Wuxi Baochuan Machinery Manufacture Co., Ltd. is a professional manufacturer of annealing machines, high speed wire drawing machines, wire drawing machines with continuous anneal, stranding machines and other electrical machines and equipments. High speed large and intermediate continuous annealed wire drawing machines we provide rank first both at home and abroad. The design and manufacturing standards conform to international standards and have got quality certification. For more information about high speed wire drawing machines, please refer to our website and contact us directly.
