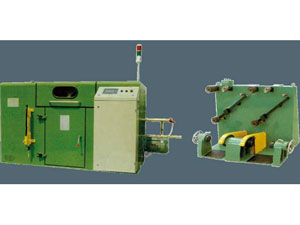

500 High Speed Twist Bunching Machine
Description
500 high speed twist bunching machine is kind of electric wire and cable equipment. This stranding machine is used to strand high frequency data cables. It is the best equipment for twist bunching five-, six- and seven LAN data cables. This twist bunching machine can twist several single conductors into one so as to meet the process requirement. 500 high speed twist bunching machine is applicable for twisting power lines and computer cables (≤7 strands) and stranding multi-strand data cables, communication cables and core wires into high speed cables and wires.
Generally speaking, 500 high speed twist bunching machine can be subdivided into two types—automatic high-speed stranding machine and three-pitch high speed bunching machine. The automatic high speed model is more popular than the former. Based on traditional back twist bunching device, three-pitch high speed twist bunching machine dramatically increases its production by over 30%.
Adjustments can be made at the operation panel in winding force, traverse width and lay length. This machine offers effective production safely by the good facility for overturn protection, wire break probe, monitoring of bearing temperature and length measuring in spool carrier. The speed is 2200 rpm (4400 twist).
Features
1. Compared with high speed stranding machine of the same mode, this twist bunching machine can strand wire materials with more than two times sectional area.
2. 500 high speed twist bunching machine adopts spindle with premium materials and strict working process so as to guarantee good performance of this stranding machine.
Parameters
Product Model | BAOC-Ø500 |
Rotate Speed | 2500 mpr |
Inlet Wire Diameter | Ø 0.75-1.5 mm |
Stranding Pitch | 4.42-41.62 |
Stranding Direction | Either Right or Left |
Take-up Bobbin | Ø 500 mm |
Coiling Tension | Magnetic Powder Clutch Tension Control |
Traversing Type | Bearing Traversing The row width and array pitch are adjustable. |
Power | 3.7 Kw Import Motor +Inverter |
Brake | Inside and Outside Electromagnetic Brake |
Area | L2600 × W1300 × H1400 |
Weight | 2300 kg |
Lantytk® Corp. is a professional manufacturer and supplier of high speed twist bunching machines in China. We are engaged in designing, developing, researching, manufacturing and selling fine line stranding machines and high speed twist bunching machines other electric machinery. In addition, Lantytk® promises to provide first class machines and diligent service for clients. We are supplying a qualitative range of high speed twist bunching machines that are known for their sturdy construction, efficiency, optimum quality and cost effectiveness.
