Large Cable Extrusion Line

Large Cable Extrusion Line

Description
Large wire cable extruder machines are applicable for extruding wire or cable with insulation of foam-skin, skin-foam. This wire and cable extrusion production line can be built with a wide range of extruders, pay-offs and tension brakes, take-ups and auxiliary equipments (including cooling troughs, capstans and accumulator systems). Laboratory equipment, customized feed screws, and control systems are also available.
The large wire cable extruder machines have a large output capacity. Various attached machines can be mounted on this wire and cable extrusion production line according to required configurations, like shaftless take-up and pay-off machine, caterpillar cable pulling machine and more. Besides, PLC computer control can be employed according to clients’ needs.

Consisting Components

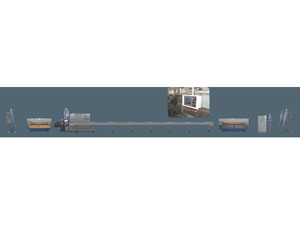

This large wire cable extruder machines consist of a variety of equipments and tools as follows. They are portal type pay-off stand, caterpillar, 120mm main extruder, automated loader and dryer, manual centering crosshead, moving trough, single layer main cooling trough, water wiper, digital diameter controller, mark printer, spark tester, meter counter, portal type take up and control box.

Application
The large wire cable extruder machines have wide applications. They adopt different screw structure types and are equipped with suitable die head and downstream equipments. Therefore, this wire and cable extrusion production line can produce all kinds of polymer products, from HDPE, PP, ABS, PVC, PET, PC, PS and other plastic materials to pipes, profiles, sheets and granules.

Features
1. The large wire cable extruder machines feature continuous production, high efficiency and automation.
2. This wire and cable extrusion production line is designed with high technology.
3. With latest technology, the large wire cable extruder machines have not only high extrusion output and plasticization but also high gloss for finished cables and wires.
4. Electric appliances are all imported, and this ensures high running stability and long service life.
5. The large wire cable extruder machines are equipped with gearbox with high-cycle rigidifying and carefully grinding treatment so as to against abrasion and noise.

Packaging: Thin Film
Mode of Transportation: Shipping

Parameter

Model BAOC-80-25D BAOC-90-25D BAOC-120-25D BAOC-150-25D BAOC-200-25D
Pay-off Type Biaxial Biaxial Biaxial Shaftless Shaftless
Pay-off Bobbin Ø 400-Ø 630 mm Ø 800-Ø 1250 mm Ø 1250-Ø 1600 mm Ø 1250-Ø 1600 mm Ø 1600-Ø 3200 mm
Screw Diameter Ø 80 mm Ø 90 mm Ø 120 mm Ø 150 mm Ø 200 mm
Screw Slenderness Ratio 25:1 25:1 25:1 25:1 25:1
Screw Speed Max.n:80 rpm Max.n:75 rpm Max.n:50 rpm Max.n:45 rpm Max.n:36 rpm
Extruding Quantity (kg\hr) 200 kg/h 300 kg/h 40 kg/h 500 kg/h 900 kg/h
Main Motor Power 40 HP 50 HP 60 HP 75 HP 200 HP
Measurement Wire Ø 2-20 Ø 3-50 Above Ø 6 mm Above Ø 10 mm Above Ø 10 mm
Hauling Power 7.5 HP 7.5 HP 10 HP 10 HP 20 HP
Take-up Power 3 HP 5 HP 5 HP 7.5 HP 20 HP
Take-up Type Biaxial\Macro Axial\Shaftless Shaftless Ø 1250 mm Shaftless Ø 1250- Ø 1600 mm Shaftless Ø 1250- Ø 1600 mm Shaftless Ø 1600- Ø 3200 mm
Out-Line Speed Max. V 500 m/min Max. V 400 m/min Max. V 300 m/min Max. V 300 m/min Max. V 300 m/min

Wuxi Baochuan Machinery Manufacture Co., Ltd. is a leading manufacturer of a wide range of large cable extrusion line (large wire cable extruder machines) that is designed as per the latest technology. Large wire and cable extrusion production line we provide employs the best quality materials and methods. The line is able to withstand varied capacities as per the requirements of the clients. Having the ability to yield a good operation, our large wire cable extruder machines are light in weight and excellent in grade. The wire is suitable to be used under all temperature conditions. It is good with alterable radius to be ideal for extruding power cables. Our range of durable cables is supplied in diverse tolerances, current conducting capacities and sizes, diameters, lengths, thickness and other technical specifications.
