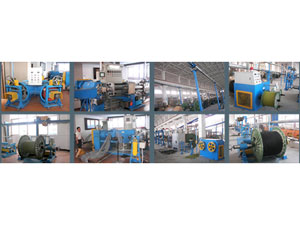

Silicon Rubber Electrical Wire/Cable Production Line

Silicon Rubber Electrical Wire/Cable Production Line

Description
Silicon rubber extruder machine production line is suitable for high-pressure sulfur production line and low-pressure sulfur production line. As for the former, sulfide pipe of 105 m is adopted. And it employs Taiwan technology with steam equilibrium. As for the later, sulfide pipe of 60 m to 80 m is utilized.
Besides, this silicon rubber extruder machine production line makes use of advanced differential pressure control of high pressure steam sulfur technology so as to carry out water steam automatic balance. Wire storage device is used so as to curl online or take-up without machine halts.
Silicon rubber wires, also known as AGR cables. They are manufactured from silicon rubber materials with applicable temperature range from minus 60 degree to 200 degree. They are tinned wires. And silicon rubber serves as insulator. Fiberglas and silicon resin makes up the braid.

Features
1. Silicon rubber extruder machine production line features good low temperature resistance, electrical insulation property, and chemical stabilization property.
2. Such rubber extruder machinery is high voltage resisting and anti-aging.
3. Silicon rubber extruder machine production line has a long service life.
4. Such rubber extruder machinery is flexible and easy to assemble.
5. Rubber extruder machine production line has the advantages of antiacid and antifungal. It is capable of standing hygrothermal environment and bearing multi-grease. And the finished cables have good flexibility and are waterproof and voltage resisting.

Application
Silicon rubber extruder machine production line is widely used for extruding wires and cables which is applicable in hot environment like lighting fitting, household appliances and electrothermal equipment, etc. Such rubber extruder machinery is suitable for extruding wires and cables which are applicable for connecting electrical equipments in power, metallurgy and chemical and many other industries.

Packaging: Thin Film
Mode of Transportation: Shipping

Parameters of Silicon Rubber Extruder Machine Production Line

Model BAOC-070 BAOC-090 BAOC-120
Pay-off Type Sling Cylinder Sling Cylinder/Macro Axial\Shaftless Sling Cylinder / Macro Axial\Shaftless
Pay-off Bobbin 400 500 630 500 630 1200 500 630 1200
Screw Diameter Ø 70 Ø 90 Ø 120
Screw Slenderness Ratio 16:1-18:1 16:1-18:1 16:1-18:1
Screw Speed 10-45 10-40 10-40
Extruding Quantity (kg\hr) 130 kg\hr 200 kg\hr 250 kg\hr
Feeding Type Granules\Sheet Stock (Extra screw should be equipped when using.)
Temperature Control Screw Water Cooling, Multi-Section Cylinder, Nose, Model Automatic Temperature Control
Main Motor Power 40 HP 74 HP 100 HP
Voltage 300\500 V
Front Sealing System of Sulfuration Channel Hydraulic or Mechanical
Sulfuration Channel Pressure Proof, Stainless and Seamless Steel Channel The length is above 80 m.
Water Seal Connecting Mechanism Driven by Air Pressure
Hauling Power 7.5 HP 10 HP 10 HP
Hauling Wire Speed 160 m/min
Water Control System Differential pressure controller controls the water level.
Pump Power 25-30 HP
Cooling Device Single Layer U-Shape Trough
Storage Wire Length 150 m
Take-up Mode Shaftless/Main Shaft/Shaftless
