Power Cable/Insulation Health Cable Production Line

High Speed Extruder Production Line (PLC)

Description
Power cable extruder production line and insulation sheath cable extruder machine are an assembly of two or more electrical conductors. The assembly is used for transmission of electrical power. Power cables may be installed as permanent wiring within buildings, buried in the ground, run overhead, or exposed. A cable sheath wraps around the outside of a cable to hold and protect the conductors on the inside. Power cable extruder production line and insulation sheath cable extruder machine are appropriate for extruding PVC and PE plastic materials. And they are mainly used to produce UL electronic wires and applicable for cladding insulated layers and sheaths of various wires and civil cables.

Features
1. Power cable extruder production line is designed with reasonable allocation.
2. This production line adopts hardened reducer.
3. It features long working life and low noise.
4. With 38GrMoA nitrogen treatment, the cylinder and screw of main engine are wear resisting, corrosion resisting and of high roughness.
5. The cylinder of this power cable extruder production line makes use of cast aluminum electric heating and fan cooling. As for screws, center water cooling is employed. Equipped with precision temperature control instrument, this production line features convenient adjustment.
6. This power cable extruder production line and insulation sheath cable extruder machine has the characteristics of good-looking appearance, reasonable structure and stable transmission.
7. This machine unit has a large output capacity and features continuous production and automation.
8. Various attached machines can be mounted according to required configurations, like shaftless take-up and pay-off machine, caterpillar cable pulling machine and more.
9. PLC computer control can be employed according to clients’ needs.

Component Equipment

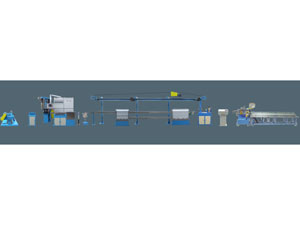

Power cable extruder production line is constituted by double end pay-off rack, straightening machine, main engine, main control box, wire storage rack, dragging machine and interlock wire cutting machine.
The optional equipments include active pay-off rack, copper wire preheater, and powder machine, low smoke zero halogen screw, low and high density screws, laser measuring diameter instrument and PLC computer control.

Advantages of Power Cable Extruder Production Line
1. High output capacity will guarantee your high frequency production.
2. We are very good at engineering. We are rigorous to every detail of manufacturing.
3. All of our electrical parts make use of international qualified brand, like Siemens and ABB, etc.
4. We provide high end quality machine so as to keep you have a good experience to your wire   and cable making.
5. All our electrical and mechanical parts are guaranteed for one year from the delivery date.

Configuration
The allocation of the power cable extruder production line and insulation sheath cable extruder machine includes pay-off device, tightening device, extruding machine, cooling stainless steel water trough (chip syringe), dragging device, take-up and creel stand and electronic system.

Safety
1. The cable must be able to withstand the voltage to which it will normally be subjected.
2. A cabling system must be installed in such a manner that it presents no danger to any person likely to come in contact with the cables.
3. The cables must not develop a hazard by induction, or through other means, in other equipment.
4. The type of insulation must suit the type of installation and the environment.
Packaging: Thin Film
Mode of Transportation: Shipping

Parameters of Power Cable Extruder Production Line

Product Model BAOC-50 BAOC-60 BAOC-65 BAOC-70 BAOC-80 BAOC-90
Pay-off Type Active Uniaxial Tension Pay-off Active Uniaxial Tension Pay-off Biaxial Biaxial Biaxial Macro Axial
Pay-off Bobbin PN400-500 PN500-600 PN400-630 PN400-630 PN400-630 PN630-800
Screw Diameter Ø 50 Ø 60 Ø 65 Ø 70 Ø 80 Ø 90
Screw Slenderness Ratio 25:1 25:1 25:1 25:1 25:1 25:1
Extruding Quantity (kg\hr) 70 100 120 150 200 250
Main Motor Power 15 HP 20 HP 25 HP 30 HP 40 HP 50 HP
Measurement Wire Ø 0.6-4.0 Ø 0.8-8.0 Ø 0.8-10 Ø 1.5-12 Ø 2-20 Ø 3-25
Temperature Control 5 Section 6 Section 6 Section 6 Section 6 Section 7 Section
Cooling Device Folding W Type/U Type Folding W Type/U Type Single Layer\Double Layer U Type Single Layer\Double Layer U Type Single Layer\Double Layer U Type Single Layer\Double Layer U Type
Hauling Power 3 HP 4 HP 5 HP 5 HP 7.5 HP 7.5 HP
Wire Storage Rack Type Slope/Horizontal Type Horizontal Type Horizontal Type Horizontal Type Horizontal Type Horizontal Type
Accumulated Wire Length 250 250 250 200 200 200
Out-Line Speed Max. 500 Max. 500 Max. 500 Max. 500 Max. 450 Max. 400
Take-up Type Biaxial Take-up\ Axial Loading Biaxial Take-up\ Axial Loading Axial Loading /Bundling Take-up Axial Loading /Bundling Take-up Axial Loading /Bundling Take-up Axial Loading /Bundling Take-up
Take-up Bobbin PN400-500 PN400-500 PN500-630 PN500-630 PN500-630 PN500-630
Take-up Power 3 HP 3 HP 4 HP 4 HP 5 HP 5 HP
Electrical Control Frequency Control +PLC Whole Control (Optional) Frequency Control +PLC Whole Control (Optional) Frequency Control +PLC Whole Control (Optional) Frequency Control +PLC Whole Control (Optional) Frequency Control +PLC Whole Control (Optional) Frequency Control +PLC Whole Control (Optional)
  • Large Cable Extrusion LineLarge wire cable extruder machines are applicable for extruding wire or cable with insulation of foam-skin, skin-foam. This wire and cable extrusion...
