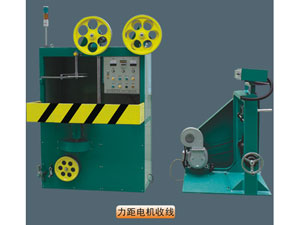

Single Layer Wrapping Machine

Single Layer Wrapping Machine

Description
This is a kind of vertical single layer wrapping machine (single layer wire taping machine). It is applicable for wrapping insulation wire core mica tape of electric wires power cables, plastic control cables and optical cables, etc. This single layer wrapping machine can wrap the tape (paper tape, aluminum foil, etc.) around the core wire. The fireproof electric wire and cable produced by this machine is mainly suitable for power plant, airport, ships, high rise construction, subway, Underground Street and recreation area.

Features
1. This single layer wrapping machine features easy operation. It adopts frequency control.
2. This single layer wire taping machine is characterized by stable speed of magnetic powder clutch tension and torque take-up.
3. The hauling power is 1 HP and the wrapping power is 1 HP.
4. The maximum wrapping speed is 2500 rpm /50m/min.

Working Principle of Single Layer Wrapping Machine
The singe layer wire taping machine adopts belt transmission through alternating current dynamo. A pair of bevel gears is driven to move so as to make the wrapping drum rotate to right and left direction. And the core wire rotates positively and negatively with the dragging wheel. Stepless transmission can be adjusted so as to meet the needs of the different winding pitch by changing the rotate speed of dragging wheel. Users can choose suitable wrapping mould, lapping type, width and wrapping direction according to their production process.

Operation Steps of Single Layer Wrapping Machine
1. Select wrapping mould, model, width and lapping direction in accordance with manufacturing process.
2. After threading, adjust the wrapping tension in line with wrapping width (just adjust the tension nut). And at the same time turn on the wrapping switch and leading switch. Run the wrapping rotate turn knob (potentionmeter) and the leading rotate knob (potentionmeter) with both hands.
3. Then observe the overlapping ratio of wrapping tape. If the overlapping ratio needs enlarging, users can turn up the leading turn knob and turn down the wrapping rotate knob. If it needs lessening, just conduct reverse operation.
4. Take-up tension can adjust the tension nut according to the wire diameter.
5. Array pitch adjuster can regulate transverses and stop nut according to coil width.
Packaging: Thin Film
Mode of Transportation: Shipping

Parameters of Single Layer Wrapping Machine

Lay of Lapping Frequency Conversion Adjustment
Applicable Wire Diameter Ø 1.6-Ø 15 mm
Applicable Tape Reel Diameter Ø 250-Ø 300 mm
Outer Diameter (O.D.) of Take-up Reel (O.D.  × Outer Width × Inner Width × Axle Hole) Ø 630 mm × 475 mm × 400 mm × Ø 56 mm
Motor Power Three Phase 380V, 1.5 Kw Frequency Control
Wrapping Tape Rotate Speed 2500 rpm
Take-up Device Torque Motor or Friction Clutch

Wuxi Baochuan Machinery Manufacture Co., Ltd. is a specialized provider of single layer wrapping machine (single layer wire taping machine). The machine we provide have been refined and improved in its technical characteristics and performances. The demand of fireproof electric wire and cable produced by this machine increases day by day, there appears brand-new equipment with special purpose for various electric wires and cable industry. And his single layer wrapping machine (single layer wire taping machine) is a typical example.
