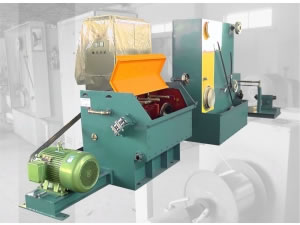

Low Speed and Large Intermediate Continuous Annealed Wire Drawing Machine

High Speed and Intermediate Continuous Annealed Wire Drawing Machine

Description
Continuous wire drawing machines (low speed large and intermediate) is constituted by wire drawing machines, annealing machines, drawing electrical control cabinets, annealing electrical control cabinets and shaftless take-up machines. Such wire drawing-annealing machines are capable of drawing and annealing copper wires from 2.6 mm-3.2 mm to 1.0 mm-2.8 mm.

Performance
1. The continuous wire drawing machines (low speed large and intermediate) adopt iron-welded annealing treatment structure and drawing capstan.
2. Center screw rod stringency is employed as for shaft size. 3. DC (direct current) triple annealing is utilized by the continuous wire drawing machines.
3. The wire drawing-annealing machine use pressure adjusting transmission and cylinder brake swing arm type brake mode.

Advantages
1. The continuous wire drawing machines (low speed large and intermediate) have the advantages of high quality, reliability and good performance.
2. These wire drawing-annealing machines are specially designed as per the set industry standards and are known for their smooth functions and performances.
3. Further, we also offer continuous wire drawing machines (low speed large and intermediate) in different technical specifications to cater the clients’ varied requirements.

After Sale Service
The warranty period of mechanical parts is one year and half a year for electrical equipments. Quick-wear parts are excluded.
Packaging: Thin Film
Mode of Transportation: Shipping

Parameters of Continuous Wire Drawing Machines

Product Model BAOC-11D/300T
Outlet Wire Diameter Ø 2.6-Ø 3.2 mm
Inlet Wire Diameter Ø 1.0-Ø 2.8 mm
Max. Wire Speed 450 mpm/max
Mechanical Reduction 19%+12%
Max. Drawing Capstan Diameter Ø 350 mm
Capstan Diameter Ø 300 mm
Take-up Capacity 200 kg/max
Main Motor Power 30 Kw
Take-up Motor Power 7.5 Kw
Max. Annealing Current DC 2000 A
Max. Annealing Voltage DC65 V
Nominal Diameter of Contact Wheel Ø 300 mm
Length of Annealing Zone 35000 mm
Annealing Power 0.4-0.6MPa, 15 L/min
Service Voltage 380 V,50/60 Hz
Boundary Dimension 2100 × 1600 × 1700
Weight 3000 kg

Wuxi Baochuan Machinery Manufacture Co., Ltd. is a specialized supplier of continuous wire drawing machines (low speed large and intermediate). We are one of the reputed manufacturers, suppliers and exporters of a wide range of low speed and large-intermediate continuous annealed wire drawing machines. They are used for the production of various engineering products. These continuous wire drawing machines are designed as per the set industry standards and are offered in various specifications. Moreover, these high quality wire drawing-annealing machines are offered at the most competitive price range.
