Power Cable/Building Cable/Insulation Sheath Cable Production Line

Power Cable/Building Cable/Insulation Sheath Cable Production Line

Description
Building cable extruder machine, power cable extruder production line and insulation sheath cable production line are suitable for extruding plastic materials, like PVC, PU and PE. They are mainly used to machine power lines, computer wires, insulated wire sheath and building cables. It is an assembly of two or more electrical conductors, usually held together with an overall sheath. The assembly is used for transmission of electrical power. Power cables may be installed as permanent wiring within buildings, buried in the ground, run overhead, or exposed. A cable sheath wraps around the outside of a cable to hold and protect the conductors on the inside.

Features
1. Building cable extruder machine, power cable extruder production line and insulation sheath cable production line are characterized by large output, continuous production and automation.
2. Attached machines can be allocated according to customers’ requirements, such as shaftless take-up and pay-off machine and crawler type dragging machine, etc.
3. PLC computer control can be adopted as required.

Advantages
1. Building cable extruder machine, power cable extruder production line and insulation sheath cable production line can satisfy the fast-changing requirements of the marketplace. Various wire and cable products are available, from power cable, building cable and insulation sheath.
2. Building cable extruder machine, power cable extruder production line and insulation sheath cable production line can process a variety of communications cables so as to serve an extensive range of applications and environments.

Component Machines

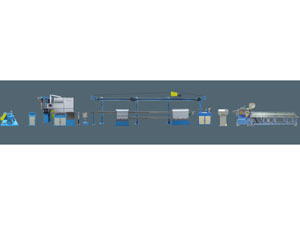

Building cable extruder machine, power cable extruder production line and insulation sheath cable production line consist of series of machines and equipments like double pay-off rack, straightening machine, main engine, control cabinet, water channel, wire storage rack, dragger and take-up machine, etc.

Options of Building Cable Extruder Machines
The following machines are optional for this machine set. They are active pay-off rack, copper wire preheater, powder machine; low smoke zero halogen special screw, low density screw, high density screw, laser measuring diameter instrument and PLC computer control.

Safety
1. The cable must be able to withstand the voltage to which it will normally be subjected.
2. A cabling system must be installed in such a manner that it presents no danger to any person        likely to come in contact with the cables;
3. The cables must not develop a hazard by induction, or through other means, in other equipment.
4. The type of insulation must suit the type of installation and the environment.

Packaging: Thin Film
Mode of Transportation: Shipping

Parameters of Building Cable Extruder Machine

Product Model BAOC-45+35 BAOC-50+35 BAOC-60+35 BAOC-65+35 BAOC-70+35 BAOC-80+35 BAOC-70+35
Pay-off Type Active Uniaxial Tension Pay-off Active Uniaxial Tension Pay-off Active Uniaxial Tension Pay-off Active Uniaxial Tension Pay-off Active Uniaxial Tension Pay-off Biaxial Macro Axial
Pay-off Bobbin Diameter PN300-500 PN400-500 PN500-600 PN400-630 PN400-630 PN400-630 PN400-800
Screw Diameter Ø 45 Ø 50 Ø 60 Ø 65 Ø 70 Ø 80 Ø 90
Screw Slenderness Ratio 25:1BMModel 25:1BMModel 25:1BMModel 25:1BMModel 25:1BMModel 25:1BMModel 25:1BMModel
Extruding Quantity (kg\hr) 50 70 100 120 130 200 250
Main Motor Power 15 HP 15 HP 20 HP 25 HP 30 HP 40 HP 50 HP
Measurement Wire Ø 0.6-3.0 Ø 0.6-4.0 Ø 0.8-8 Ø 0.8-10 Ø 1.5-12 Ø 2-20 Ø 3-25
Cooling Device Folding W Type/U Type Folding W Type/U Type Folding W Type/U Type Single Layer\Double Layer U Type Single Layer\Double Layer U Type Single Layer\Double Layer U Type Single Layer\Double Layer U Type
Accumulated Wire Length 250 250 250 250 200 200 200
Hauling Power 3 HP 3 HP 4 HP 5 HP 5 HP 7.5 HP 7.5 HP
Out-Line Speed Max.500 Max.500 Max.500 Max.500 Max.500 Max.450 Max.400
Take-up Type Biaxial Take-up\ Axial Loading Biaxial Take-up\ Axial Loading Biaxial Take-up\ Axial Loading Axial Loading /Bundling Take-up Axial Loading /Bundling Take-up Axial Loading /Bundling Take-up Axial Loading /Bundling Take-up
Take-up Bobbin PN300-400 PN400-500 PN400-500 PN500-630 PN500-630 PN500-630 PN500-630
Take-up Power 3 HP 4 HP 4 HP 4 HP 4 HP 5 HP 5 HP

Wuxi Baochuan Machinery Manufacture Co., Ltd. is engaged in the production of various electrical machines and production lines, such as building cable extruder machine, power cable extruder production line and insulation sheath cable production line, stranding machines, wire wrapping machines and more. The building cable extruder machines can produce various wires and cables to meet customers’ demands. And the wires and cables processed by the power cable extruder production line we provide can be applicable to an extensive range of industries and conditions.
