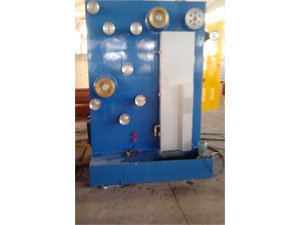

Intermediate Annealing Machine

Intermediate Annealing Machine

Description
Intermediate annealing machine is sort of continuous annealing machinery. It is used to anneal copper wires from Ø 1.8 mm to Ø 0.4 mm. This machine adopts DC triple annealing type. This continuous annealing machinery can improve or eliminate various flaws and residual stress generated during the process of casting, forging, rolling and welding. Besides, this intermediate annealing machine can keep work pieces from deformation and craze. Work pieces are softened so as to cut and process the materials. The grain is refined so as to improve the mechanical property of work pieces.
Metals are heated to certain temperature for enough time, and then cooled at proper speed. The purpose we use this intermediate annealing machine is to soften materials or work pieces which have been cast, forged and rolled, welded or cut. After this softening process, the ductility and tenacity of the materials or metals can be greatly improved.

Features
1. Continuous annealing machinery adopts dual inverter control and automatic correction of    tension.
2. Intermediate annealing machine is transmitted by precision grinding gears.
3. The surface of wire drawing wheel is sprayed with tungsten carbide.
4. Rod breakdown continuous annealing machinery can be used cooperatively with continuous annealing, shaftless take-up, shaft winding and vertical plum blossom winding machine.
5. The annealing voltage will automatically trace the speed of wire drawing machine.
6. As for wire drawing part, it employs fully submerged lubrication.
7. Continuous annealing machinery adopts single motor and power control.

Advantages
1. World famous parts suppliers are available for us. And they have high price performance ratio.
2. Second section annealing system is utilized, making the continuous annealing machinery outside electrically neutral (no current flow to other unit).
3. We produce the host machine and key components on our own, so the quality is guaranteed and reliable.

 Pre-Sale Training
In order to guarantee that customers are able to fully operate the continuous annealing machinery, if the customers need, we can provide training for them. And the training program includes:
 (1) Correct operating mode
 (2) Correct maintenance way
 (3) Removable simple problem for our machine product
After Sale Service
The warranty period of mechanical part is one year and half a year for electrical equipments.
Packaging: Thin Film
Mode of Transportation: Shipping

Parameters of Continuous Annealing Machinery

Product Model BAOC-250TA BAOC-250TB BAOC-250TC
Wire Range Ø 0.40-Ø 1.2 mm/max Ø 0.4-Ø 1.6 mm/max Ø 1.6-Ø 1.8 mm/max
Max. Wire Speed 1200 mpm/max 1200 mpm/max 1500 mpm/max
Outer Diameter of Dehydration Module Ø 25 mm Ø 25 mm Ø 25 mm
Max. Annealing Current DC 1200 A/max DC 1500 A/max DC 2000 A/max
Max. Annealing Voltage DC 60 V/max DC 60 V/max DC 60 V/max
Annealing Power 72 kVA/max 97 kVA/max 120 kVA/max
Nominal Diameter of Contact Wheel Ø 250 mm Ø 250 mm Ø 450 mm
Annealing Length 1200 mm 1500 mm 1500 mm
Preheating Section Length 2550 mm 2890 mm 3560 mm
Steam Generator Power 9 Kw 9 Kw 9 Kw
Quantity of Steam 12 kg/h 12 kg/h 12 kg/h
Annealing Cooling Water Consumption 300 L/min 300 L/min 300 L/min
Compressed Air Consumption 0.4-0.6 MPa, 30 L/min 0.4-0.6 MPa, 30 L/min 0.4-0.6 MPa, 30 L/min
Weight 2000 kg 2300 kg 2300 kg
Matched Machine Model BAOC17D, BAOC17MDS, 17MD, 17DS
