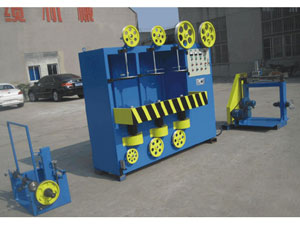

Three Layer Wrapping Machine

Double Layer Wrapping Machine

Description
Three layer wrapping machine is a vertical three layer taping machine for wires and cables. It is suitable for wrapping copper wires and cable surface center like cotton tape, transparent tape, fireproof belt, aluminum foil and drawstring and more. It is widely used to wrap insulation wire core mica tapes of electric wires, power cables, plastic control cables, optical cables and fireproof belts and more. The fireproof wire and cable are mainly used in power plant, airport, high-rise building, metro, underground street, entertainment place and other places.

Working Principle
Three layer wrapping machine is a kind of wrapping machine with three heads. This three layer taping machine adopts belt turntable rotation through inverter motor so as to make the wrapping drum rotate to right, middle and left respectively. And the core wire rotates positively and negatively through three lapping. Thus, it carries out three-time wrapping so as to achieve the goal of three times lapping. Stepless transmission is regulated so as to adjust revolution speed according to different requirements of lay of lapping.

Packaging: Thin Film
Mode of Transportation: Shipping

Parameters of Three Layer Wrapping Machine

Lay of Lapping Motor Control
Applicable Wire Diameter Ø0.60-Ø15mm
Applicable Tape Reel Diameter Ø250-Ø300mm
Outer Diameter (O.D.) of Take-up Reel (O.D.  × Outer Width × Inner Width × Axle Hole) Ø 630 mm × 475 mm × 400mm × Ø56mm
Motor Power Three Phase 380 V 1.5 Kw Frequency Control
Revolution Speed 2500 mpr
Take-up Device Torque Motor

Wuxi Baochuan Machinery Manufacture Co., Ltd. is a high-tech enterprise, specializing in the research and development, manufacture and trade of electrical equipment such as three layer wrapping machines, wire drawing machinery and annealing machines and more. And the three layer taping machine we provide are widely utilized in wires and cables industry. For detailed information about three layer wrapping machines, please visit our website and contact us directly.
