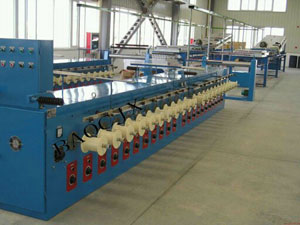

Copper Clad Aluminum Conduit Annealing Machine

Copper Clad Aluminum Conduit Annealing Machine

Description
Copper clad aluminum conduit machine (copper clad aluminum conduit annealing machine) is mainly used to anneal copper clad aluminum (Ø 0.10-Ø 0.4 mm). This copper annealing machinery is primarily composed of 40 head pay-off rack and tubular copper wire softening furnace.

Performance
1. Copper clad aluminum conduit machine takes tension wire as its traversing type.
2. Copper annealing machinery adopts tubular annealing method.
3. Copper clad aluminum conduit annealing machine employs single plate torque take-up type.
4. The spool bobbin size is PT5-PT25 (can be ordered according to the bobbin offered by the customers).
5. Copper clad aluminum conduit machine takes fission cantilever or one-piece leading method.
6. Copper annealing machinery makes use of gear motor to control the independent up and down winding displacement.

Main Features
1. The internal furnace design adds certain space inside the annealer, and this can make the annealing furnace with temperature-distribution uniformity.
2. This copper clad aluminum conduit machine adopts dual tinning tank design, so it can produce two kinds of tin-coating copper wires in the same time.
3. The spooler is arranged in double layer and such structure can save space.
4. This copper clad aluminum conduit machine is equipped with 40 head of high speed pipe type annealing furnace, 50 cm thickening, four-side reflecting, uniform heating, thermal insulation and energy saving. All this has been granted the national patent.

Pre-Sale Service
In order to guarantee the customers are able to fully operate the copper clad aluminum conduit machine, if the customers need, we can provide pre-sale training for customers. The pre-sale training includes:
 (1) Correct operating mode
 (2) Correct maintenance way
 (3) Removable simple problem for our machine product
Packaging: Thin Film
Mode of Transportation: Shipping

Parameters of Copper Clad Aluminum Conduit Machine


Product Model BAOC-40AH BAOC-32H BAOC-24AH
Number of Thread 40 32 24
Wire Range (mm) Ø 0.10-Ø 0.40 Ø 0.10-Ø 0.40 Ø 0.10-Ø 0.40
Max. Wire Speed 250 mpm 250 mpm 250 mpm
Annealing Length 5 m 5 m 5 m
Installed Electric Power (Kw) 42 42 42
Installed Motive Power (Kw) 12 10 9
Total Installed Power (Kw) 54 52 51
Boundary Dimension (mm) 17500 × 2200 × 1600 16500 × 2200 × 1600 15500 × 1600 × 1600
Weight 3500 kg 3200 kg 3000 kg

Wuxi Baochuan Machinery Manufacture Co., Ltd. is a professional manufacturer in making copper clad aluminum conduit machine. Owing a technical team formed by many experts and engineers, we are concentrated on making the best electrical machines and equipments for customers from China and abroad, such as copper annealing machinery, copper clad aluminum conduit machine, stranding machine and wire drawing machine, etc.
