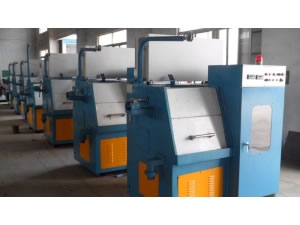

Dual Inverter Control Copper Fine Wire Drawing Machine

Dual Inverter Control Copper Fine Wire Drawing Machine

Description
Dual inverter control copper fine wire drawing machinery, also known as dual frequency wire drawing machine, is composed of pay-off stands, HXE-14DT main drawing machine, steam generator, electrical control system and spare parts. Many other devices should be used together with this dual inverter control copper fine wire drawing machinery so as to finish the whole process. They are wire drawing, annealing, cooling and drying devices. Among the drawing, annealing and closing lines, computer is adopted to coordinate the speed.

Features
1. Dual inverter control copper fine wire drawing machinery adopts double inverter with little slip frequency. And the outlet wires are good-looking and of high quality.
2. Such frequency wire drawing machine employs vertical configuration for wire drawing area.
3. Dual inverter control copper fine wire drawing machinery utilizes integrated iron casting structure.
4. Such frequency wire drawing machine features flat belt transmission, zero slip pilot design, high productivity, good quality finished wire, convenient maintenance and low noise.
5. The drawing parts are vertically designed.
6. Advanced parts and components are applied so as to ensure high reliability.
7. Dual inverter control copper fine wire drawing machinery is fully automatic and self-sustaining and is characterized by consistent production.
8. Such frequency wire drawing machine is controlled by DC or dual inverter.

Advantages
1. The finished wires and cables have good-looking appearance and are of high quality.
2. Dual inverter control copper fine wire drawing machinery utilizes compact construction.
3. Such frequency wire drawing machine has the advantages of high efficiency and lower consumption
4. Dual inverter control copper fine wire drawing machinery is stable and reliable in performance.
5. Such frequency wire drawing machine takes advantage of human centered design.

After-Sales Service
1. We offer regular maintenance and product tracking
2. Related machine parts are available at cost price.

Parameters of Copper Fine Wire Drawing Machinery

Machine Type BAOC22DS BAOC24DS
Control System Electrical Analog (Buttoned )
Power Control Dual Inverter Control
Outlet Line Dia. Ø 0.1 to Ø 0.32mm Ø 0.07 to Ø 0.25
Inlet Line Dia. Ø 0.6 to Ø 1.2 Ø 0.5 to Ø 1.0
Max. Line Speed 2500 mpm/max 2500 mpm/max
Dies No. 22 24
Mechanical Reduction 15%+8% 13%+8%
Final Slip Ratio 0%-2%
Structure Integrated Casting
Capstan Ceramic Plasma Capstan
Wire Drawing Wheel Arrangement Four Wire Drawing Wheel, Two Layers ( Vertical)
Max. Wire Drawing Dia. Ø 242 Ø 242
Capstan Dia. Ø 206 Ø 206
Spool Bobbin Size O.D.Ø 380 mm/max O.D.Ø 380 mm/max
Bobbin Loading and Unloading Type Shaft Type
Traverse Method 50W-100W Belt Type Synchronous Motor
Main Motor Power 11 Kw 11 Kw
Spooling Motor Power 3.7 Kw 3.7 Kw
Transmission Model Flat Belt
Correction Factor PID Displacement Detection and Automatic Control Winding
Detecting Device Weight Balance by Swing Arm
Tension Control Balance Weight Type
Take-up-Capacity 50KG /Max
Brake Mode Magnetic Brake
Bearing Lubrication Mode Oil Free Type
Lubrication of Wire Drawing   Spray Type
Service Voltage 380 V 50/60 Hz
Lubricant Oil Capacity 25 liter / minute
Weight 2400 kg 2400 kg
