Low Speed Copper Rod Breakdown Machine

Low Speed Copper Rod Breakdown Machine

Description

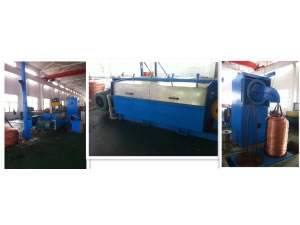

Low speed copper rod breakdown mill is highly effective in drawing and coiling aluminum and copper wires. It consists of gearbox wire drawing machine, shaftless double plate take-up machine, a set of electrical control system and a pay-off-rack. This low speed cone-type drawing machine can draw copper wires from 8 mm to 3.0 mm and aluminum rod from 9.5 mm to 3.0 mm. After annealing, the finished copper wires are checked and accepted according to the standards of National Electrician Round Copper Wire. And the change of the outer diameter is below plus-minus 0.01 mm. Besides, there is no surface defect between single wire drawing die and take-up reel. The surface is bright, clean and round.

Features of Low Speed Cone-Type Drawing Machine
1. The cone pulley is made of cast steel and is sprayed with tungsten carbide, which makes it ultra hard and wear-resisting.
2. This rod breakdown mill is applicable for mild steel, carbon steel, stainless steel, copper, aluminum and alloys.
3. High speed timing belts transmission is power saving.
4. Alloy steel is hardened with high efficiency.
5. With tungsten carbide cones, this low speed cone-type drawing machine features long service life.
6. Options like submerged lubrication or splash lubrication are available.
7. Cones shaft assemblies are equipped with easily removable bolts.
8. Dancer system is utilized for synchronization of wire collection.
9. Re-circulation of lubricant is carried out through fluid pump.

Application
This rod breakdown mill is applicable for continuous drawing and softening copper wires. The copper wire will automatically switch to another empty plate when reaching its set meters. The whole process is non-stop. The outlet wires are of no raw silk, high quality and efficiency. Capstan adopts variable frequency drive independently for quick change of dies. All the needed wire diameters are input by touching machine. We only need to change the final export mold.

Competitive Advantages
1. This rod breakdown mill adopts variable frequency drives of famous brands in China with warranty period of 18 months. Besides, this low speed cone-type machine employs bearings from domestic big brands and imported oil seals.
2. This rod break down machine uses national brand motor.
3. Low tension switches of first class brands from China and foreign countries are utilized as well.
4. The cone pulley is made of cast steel and is sprayed with tungsten carbide, which makes it ultra hard and wear-resisting.

Performance of Rod Breakdown Mill
1. The main engine is welded with steel plate.
2. This rod break down machine employs all gear transmission between cone pulleys.
3. This low speed cone-type drawing machine is under frequency control.
4. Lubrication of bearing makes use of enforced oil feed by oil pump.
Packaging: Thin Film
Mode of Transportation: Shipping

Parameters of Rod Breakdown Mill

Machine Type BAOC450/9D BAOC450/13D
Outlet Diameter Ø 3.0 to Ø 2.6 mm Copper Wire Ø 3.0 to Ø 2.0 Copper Wire
Ø 4.5 to Ø 3.0 Aluminum Wire Ø 4.7 to Ø 1.5 Aluminum Wire
Inlet Diameter Ø 8.0 Copper Wire Ø 8.0 Copper Wire
Ø 9.5 Aluminum Wire Ø 9.5 Aluminum Wire
Max. Line Speed 5 to 6.5 m/s 8 to 9 m/s
Max. Dies Number 9 13
Mechanical Coefficient of Extension 1.2 to 1.28 1.2 to 1.28
Capstan Diameter Ø 450 mm
Cone Pulley Number 4N
Transmission Mode Gears
Main Motor Power AC110 Kw AC160 Kw
Spooling Motor Power AC15 Kw 6P
Lubrication Oil Capacity 500 liter/min 800 liter/min
Boundary Dimension 5400 × 1450 × 1020 8700 × 1200 × 1200

Wuxi Baochuan Machinery Manufacture Co., Ltd. offers a wide range of rod breakdown mill. Single or multi-cone is available. In addition, there are ring type drawing capstans for convenience and low maintenance. We also offer customized designs and developing rod breakdown machines as per the client’s requirements. Hardened ground gear drive timing belt drive arrangement are optional for better efficiency , lower maintenance, reduction of sound level and zero vibration. For detailed information about this low speed cone-type drawing machine for copper, please visit our website and contact us directly.
