Wet Wire Drawing Machines

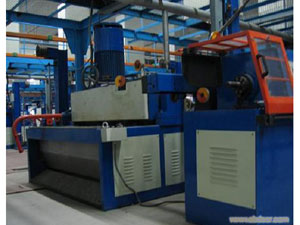

Wet Wire Drawing Machines

Description
Wet wire drawing machines, also known as water tank wire drawing machines, are ideal equipment for modern steel cord production. They are composed of host machine, take-up machine, outlet wire machine and electric control cabinet. They consist of four groups of cone pulleys as well. These wet wire drawing machines are applicable for drawing high -carbon steel wire, mild steel wire and 0.70-0.92C% steel cord.
These water tank wire drawing machines are designed with 21 passes so as to improve total reduction and inlet tensile strength. Also, these wet wire drawing machines are equipped with constant tension adjustment system so as to enhance the take-up quality of steel wires. The outlet wires pass through pulley block type guide roller. And the movable block is provided with adjustable weight balance lever arm. And the moment of balance weight determines constant tension force during the wire drawing process. When the mould diameter change leads to the variation of wire length, the shifted signal on the movable block will timely reports to PLC. After calculating and timely adjusting the revolving speed of take-up motor, the wet wire drawing machine and take-up machine will be synchronic in take-up speed.
These water tank wire drawing machines adopt winding mechanism of horizontal take-up machine. With double synchronous cog belt, the cable pushrod can conduct reciprocating wire drawing. This mechanism can improve the take-up quality and is beneficial for dual twisting machine to pay-off. Besides, this winding mechanism can adapt to various specifications of spools. The pay-off machine of these wet wire drawing machines have the automatic control function of pay-off damping pneumatic proportional valve. This makes the water tank wire drawing machine with the improved defensive function. What’s more, these machines can be left unattended.

Features
1. The wet wire drawing machines can draw wires as fast as 20 m/s.
2. The drawing passes of the water tank wire drawing machine can reach 22 passes.
3. Sprayed with WC (Wolfram Carbide), these wire drawing mills wear well.
4. These water tank wire drawing machines have the feature of easy operation, starting up and halt instructions. Besides, they possess the function of automatic shutdown –line or fault occurs.

Advantages
1. Different capstan diameters and spool sizes are available.
2. These wet wire drawing machines have multi-spindle and multi-die, which suit best with oil based lubricants.
3. We provide complete accessories and spares parts as well as custom design to meet clients’ needs.
Package: Thin Film
Transportation Mode: By Sea

Parameters of Wet Tank Wire Drawing Machines

Product Model BAOC160-21-275 BAOC160-21-275A BAOC160-23-320
Reel Diameter Ø 275 mm Ø 275 mm Ø 320 mm
Maximum Diameter of Inlet Wire Ø 1.4 mm Ø 1.6-Ø 1.9 mm Ø 1.6-Ø 1.9 mm
Inlet Tensile Strength Ø 275 mm Ø 275 mm Ø 320 mm
Outlet Wire Diameter Ø 0.15 mm-Ø 0.22 mm Ø 0.15 mm-Ø 0.38 mm Ø 0.18 mm-Ø 0.30 mm
Max. Wire Drawing Speed 20 m/s 22 m/s 20 m/s
Drawing Passes 21 21 23
Reduction Per Draft 14.5% 13.50% 13.40%
Total Reduction 96% 96.4% 96.8%
Tensile Strength 3200MPa
Capacity Of Lubricant Tank 600 L
Emulsion Cooling System Heat Exchanger Cooling Water Outside Circulation
Transverse Method Servo Motor Wiring
Tilting Force ≤200N
Electric Control Dual Inverter Control Stepless Adjustment of Speed and PLC Full Digital Calculation and Process Control
Motor Power 22 Kw 30 Kw 30 Kw
Boundary Dimension 1200 × 1600 × 1910 mm 1200 × 1600 × 1910 mm 1200 × 1600 × 1910 mm
Dimension 650 × 850 × 1630 mm 650 × 850 × 1630 mm 650 × 850 × 1630 mm

Wuxi Baochuan Machinery Manufacture Co., Ltd. is a professional producer of wire drawing machinery. The wire drawing mills we provide consist of swivel die holders, cone rings; lubricant cooling system and adjustable exit die holders. Besides, we offer state-of-the-art wet wire drawing machines to draw intermediate wires and fine wires from ferrous metals, non ferrous metals and metal alloys. These water tank wire drawing machines are suitable for high-speed drawing.
